Aluminum roller garage door/Roller Shutter Door

Aluminum roller garage doors by META  are available in a wide range of designs to meet your specific requirements. They can come in a range of colors and are lightweight so they’re very fuel-efficient whilst keeping your assets safe & protected from theft. Consisted of interlocking aluminum alloy slats, with plastic end clips on both sides of the curtain to prevent lateral movement, our aluminum roller shutter garage doors are designed and widely used for commercial and residential garages.

What makes META aluminium roller garage doors stand out?

♦Security / burglarproof. Our aluminum rolling shutter garage door slats are made of 6063 aluminum ingot to ensure the door in high impact grade and durable.

♦ Afforable, single layer aluminum roller shutter garage door are less material required, so the price is less that double layer aluminum roller shutter garage door.
♦Long service life. Aluminum roller shutter garage door is made of extruded aluminum slats, which makes the roller shutter door rust proof, anti-corrosion, and long life service.
♦Noiseless. The noise level is around GB/TI6730,Rw=20dB only, because we put special long service life rubber tape in between the aluminum roller shutter door slats for noise reduction. In the mean time, rubber tape could make the door runs more smoothly.
♦Lightweight. Aluminum roller shutter garage doors are only 40% weight compared to same size galvanized steel rolling shutter doors. It is easier for transportation as well as installation.
♦Nice appearance. The aluminum roller shutter garage door could be powder coatet to any standard RAL color to meet your design requirement to match the surroundings.

TECHNICAL SPECIFICATIONS

Curtain:

The rolling garage door curtain itself consists of Consisted of interlocking Aluminum blades/slats, with plastic
end clips on both sides of curtain to prevent lateral movement.
Thickness option: 1 mm,1.2mm, 1.4 mm, 2 mm, other thickness are available at extra cost.

Blade / Slat options: from 55mm to 140 mm pitch height, we always have the slats that suit your garage best.

Bottom rail (with EPDM rubber weather real):
♦Material: Aluminum alloy
♦With plastic end caps on both sides
♦Dimension:40*90mm, Depth*Height

♦With EPDM rubber weather seal to prevent the dust, rain, insects from coming inside.

Guide rail (with brush):
♦Material: Aluminum alloy
♦Dimension: from 70mm to 120 mm width aluminum extruded guide rail
♦Thickness available: from 2 mm to 2.5mm thickness

♦With brush inserted on both sides of the guide rail, to make the door runs more quietly and smoothly.

Shaft / Axle:
♦Material: galvanized steel
♦Diameter: 3 inches, 5 inches, 6 inches, 8 inches, 10 inches
♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm

Mullions: Removable center mullions are available on request for applications were shutter opening can’t be covered by one shutter door.

Side plates / brackets
♦The brackets are manufactured from mild steel and supplied in premed finish
♦The brackets can only be installed on a structural fixing surface such as concrete, steel columns, steel angles are normally used to supported the brackets if needed
♦With plates slotted to accommodate shaft or motor mounting.

Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Automatic operation with motor(remote controls, switch button)

Optional:
♦Shutter box / hood cover
♦Perforated slats, punched slats are available if needed
♦Wicket door

Warranty / Guarantees:

All META doors are fully compliant and CE marked. They come with a comprehensive 3 years warranty.

Call now on 0086-20-39010223 to discuss your options or email your requirements to info@imetadoors.com and we will be at your service anytime.

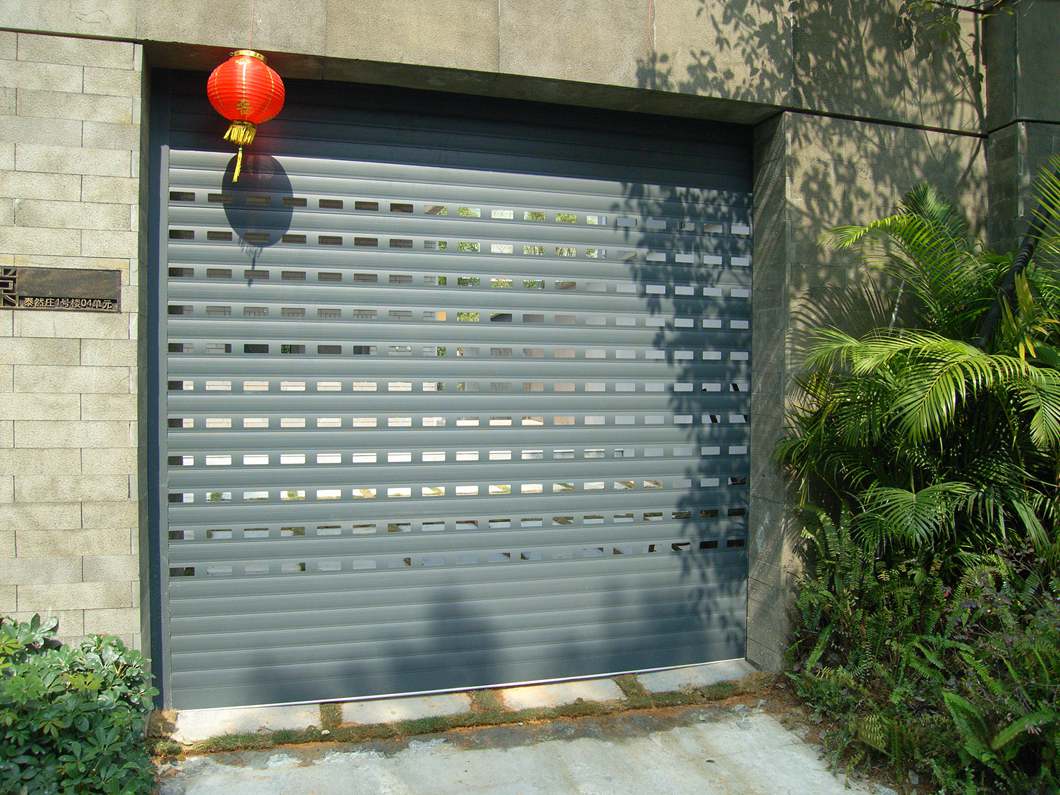

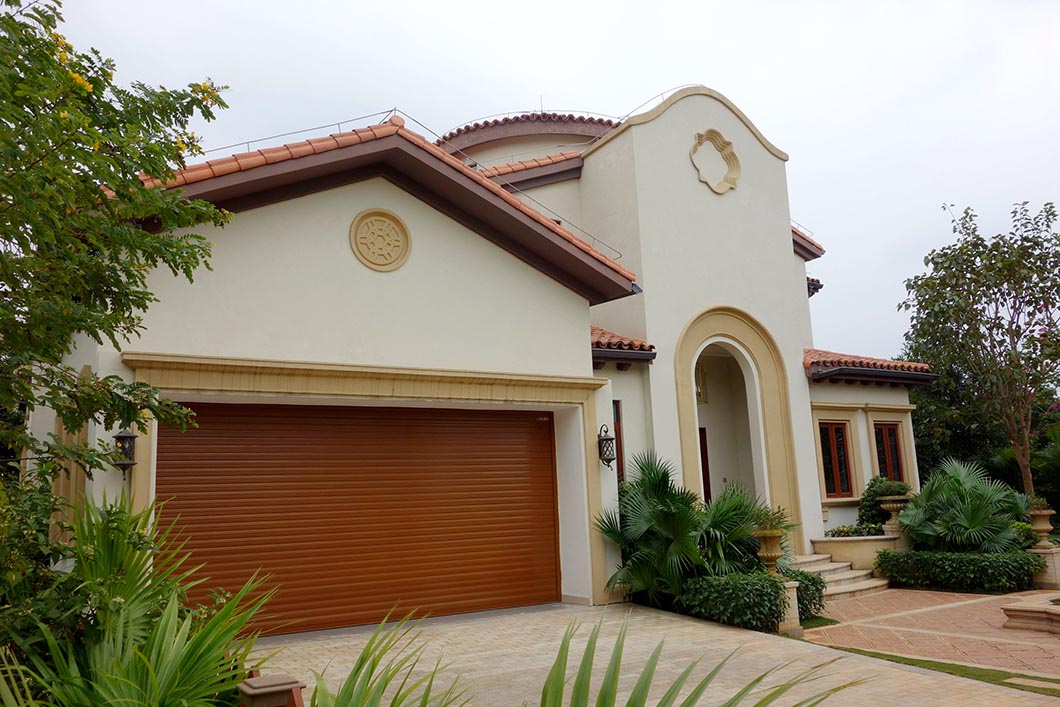

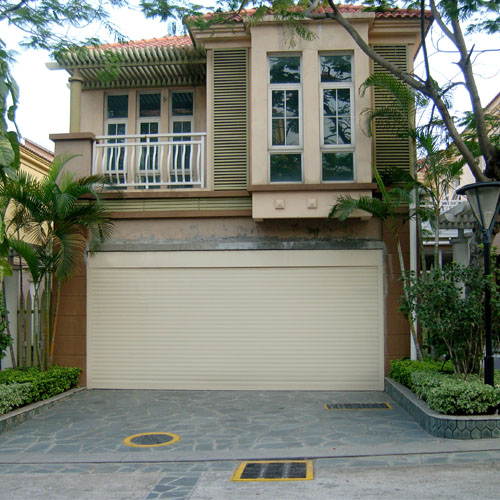

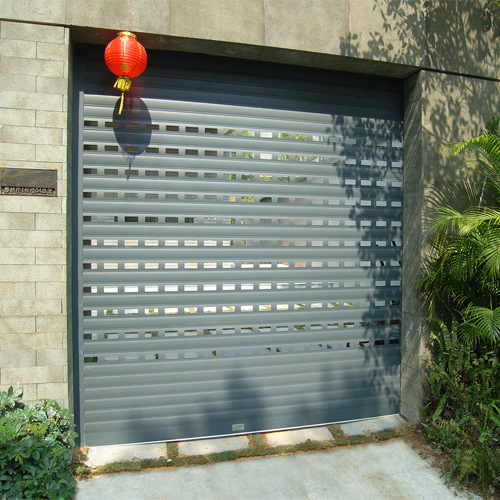

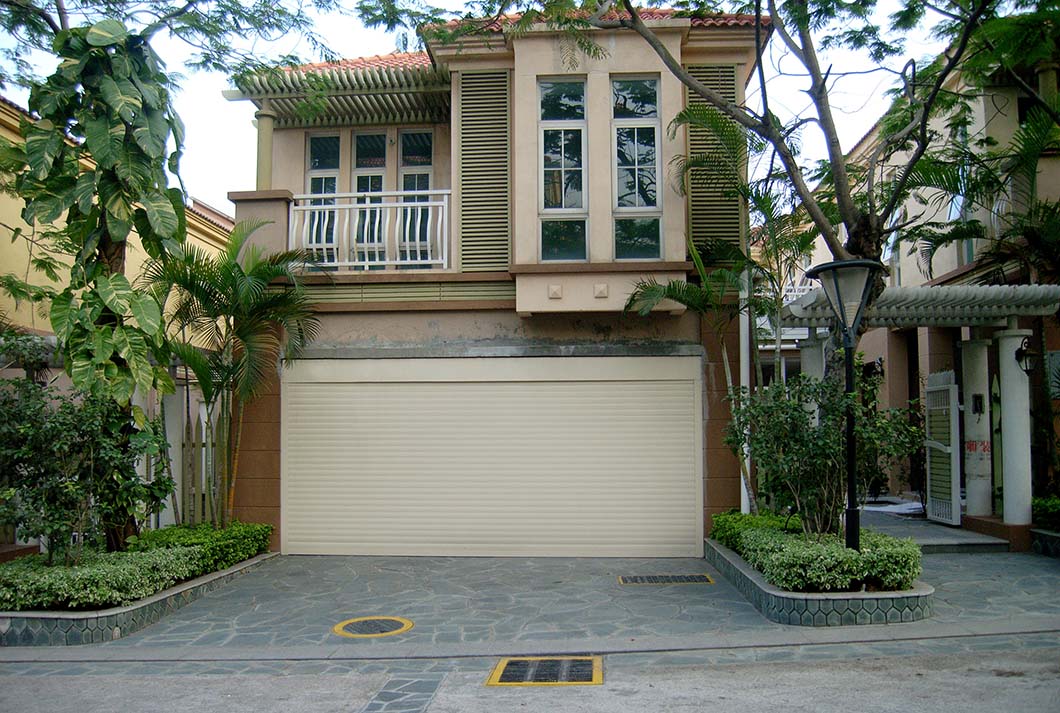

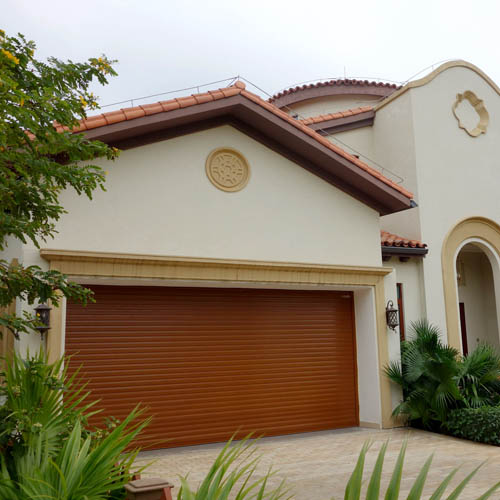

PROJECT PHOTOS

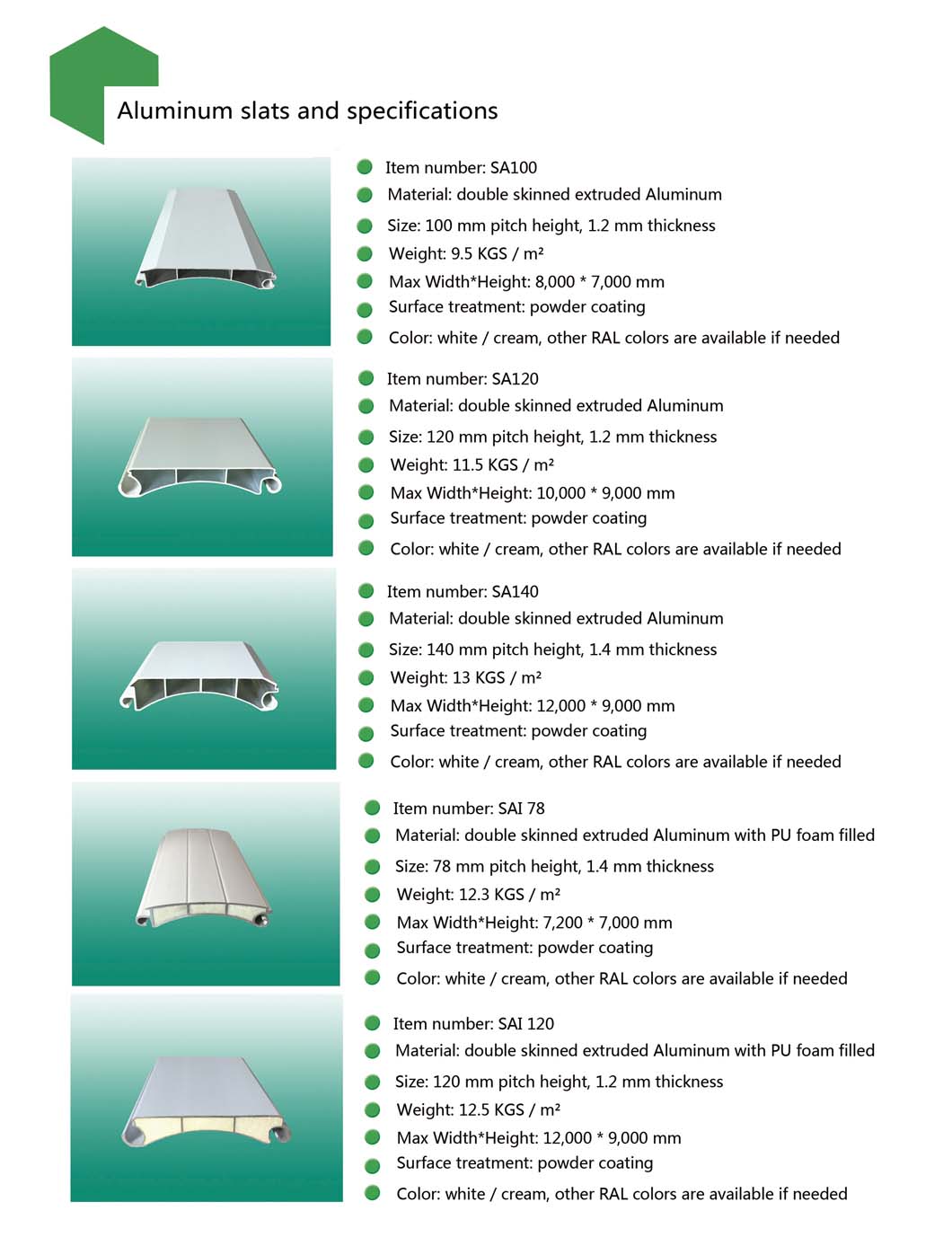

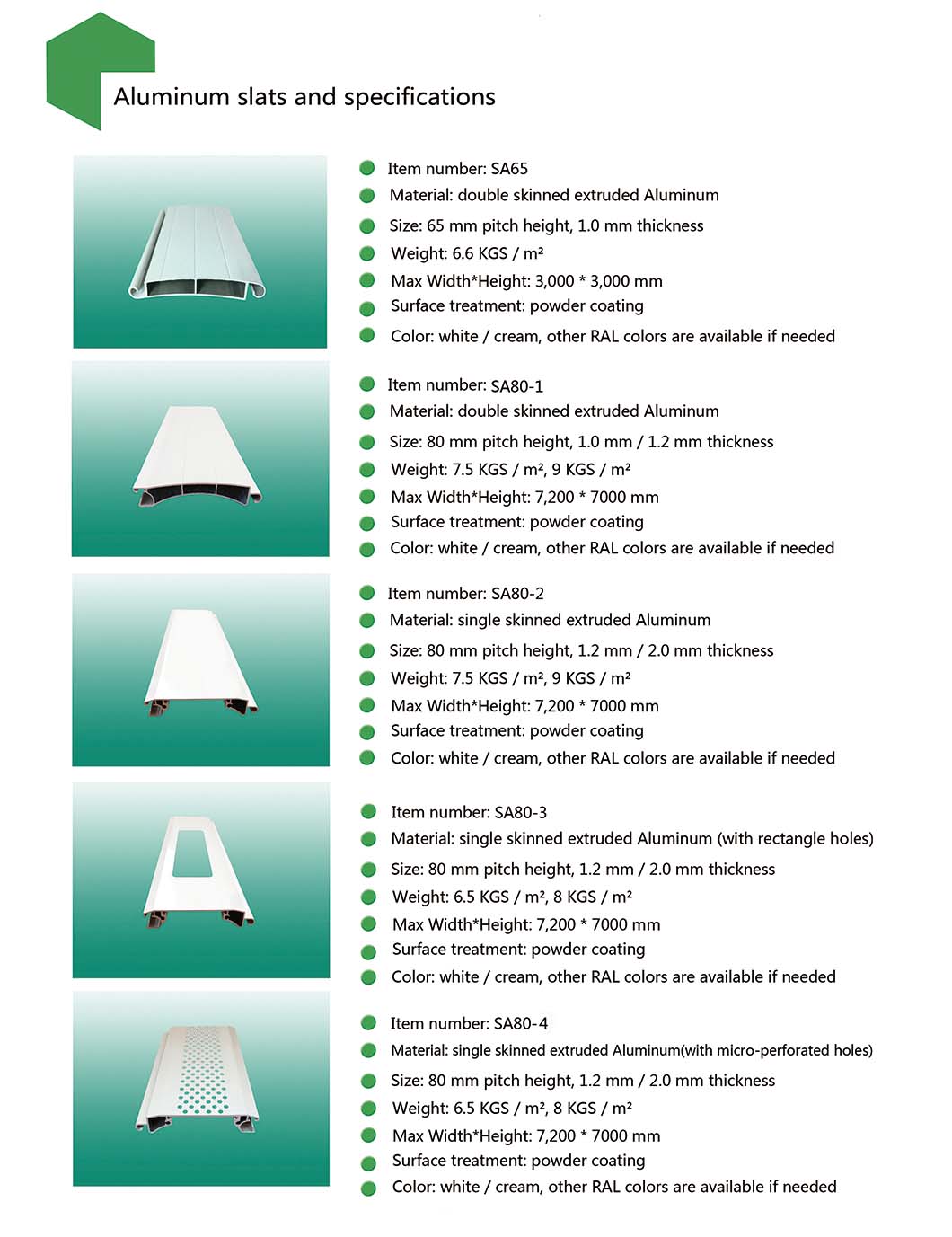

DOOR CURTAIN OPTIONS

Other slats are available by making moulds

COLOR OPTIONS

Standard color: white & beige

Any other RAL colors are available by powder coating, anodized, electrophoresis, PVDF.
