Summary
reducing energy costs
allowing faster material handling
lessen any chance of impact damage
provide swift security
Application

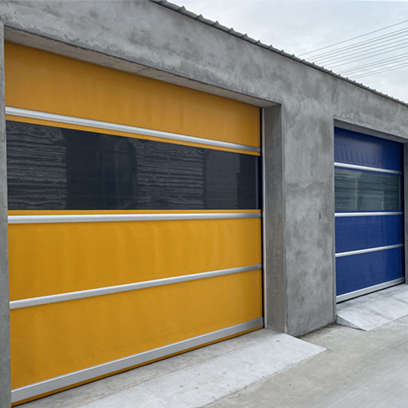

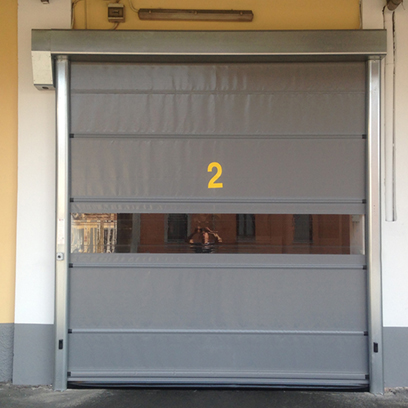

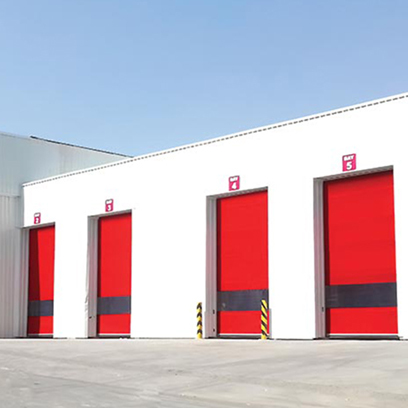

Warehouses with larger openings, loading bays, aircraft hangars and anywhere there is a need for climate control such as food processing, chemical and pharmaceutical industries, or a greater need for security.
Features
Maximum Size: 6500mm x 6000mm
Opening Speed: Up to 1.9m/s, variable
Temperature Resistance: -25°C to +65°C
Wind Resistance: Available up to Class 8 (Beaufort Scale)
Weight: Canvas 950g / M2
Steel Construction: Galvanized Steel with Full Cover
Vision Window: Available
Parameters
|
Product Name
|

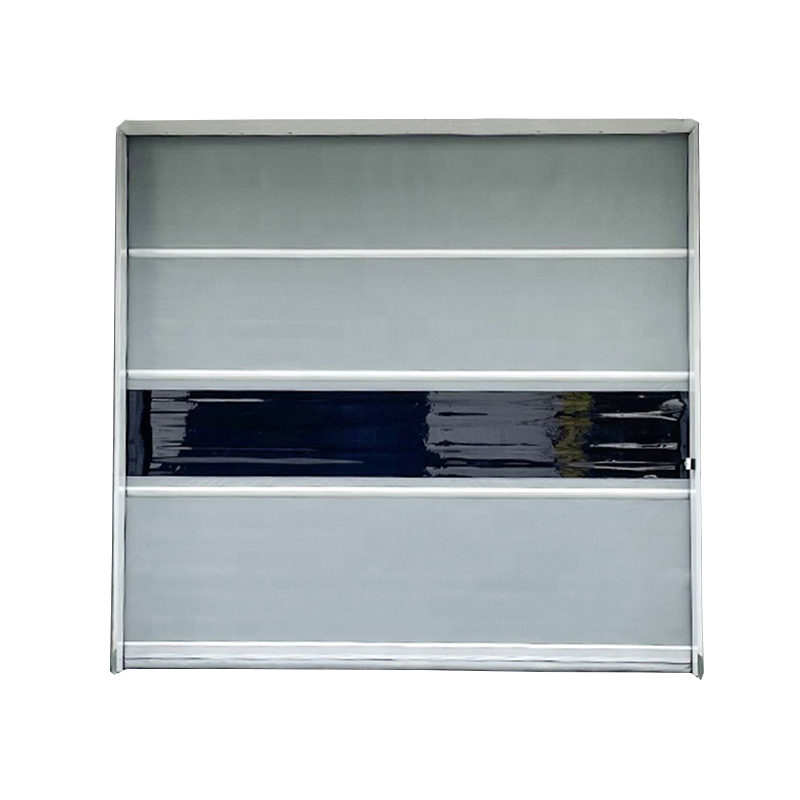

High Speed Roll-up Door
|
|
Maximum Door Size
|
W6500mm*H6000mm
|
|
Opening speed
|
0.8 - 2.0 m/s, adjustable
|
|
Closing speed
|
0.6 - 1.0 m/s, adjustable
|
|
Operation way
|
Remote control, wall switch, Magnetic loop,Radar, Pull Rope Switch, Signal lamp
|
|
Emergency Operation
|
Available with manual crank
|
|
Curtain Thickness
|
0.8 / 1.0 / 1.2 / 1.5mm
|
|
Hardware Material
|
Frame and Cover Box - Galvanized steel / 304 stainless steel
|
|
Track Guide - Galvanized Steel / 304 Stainless Steel / Aluminum extrusion
|
|
Wind Resistance Bar - Aluminum Extrusion
|
|
Curtain - SIOEN high strengh polyester textile fiber
|
|
Vision panel - 1.5mm thick transparent PVC
|
|
Motor Brand
|
SNMA, SEW, SIEMENS,SEJ,SERVO
|
|
Motor Power
|
0.75kw - 5.50kw
|
|
Input Voltage
|
220V 50HZ/380V 50HZ
|
|
PLC Brand
|
SIEMENS / MIT-SUBISHI / OMRON /KEWEI
|
|
Inverter / AC Driver
|
MIT-SUBISHI,SIEMENS,SHIHLIN
|
|
Control Box Finish
|
Powder coated steel /304 stainless steel
|
|
Safety Performance
|
Infrared photo sensor, Safety airbag edge protection
|
|
Tolerance Frequency
|
2 times/min, Inverter opening 2500-3000 times/day
|
|
Safety Class
|
IP55
|
|
Wind Resistance
|
Class 5-8 (Beafourt Scale)
|
|
Operating Life
|
500,000 cycles
|
|
Working Temperature
|
-25 °C to 65 °C
|
|
Warranty
|
1 year for electric parts, 5 years for mechnical parts
|
