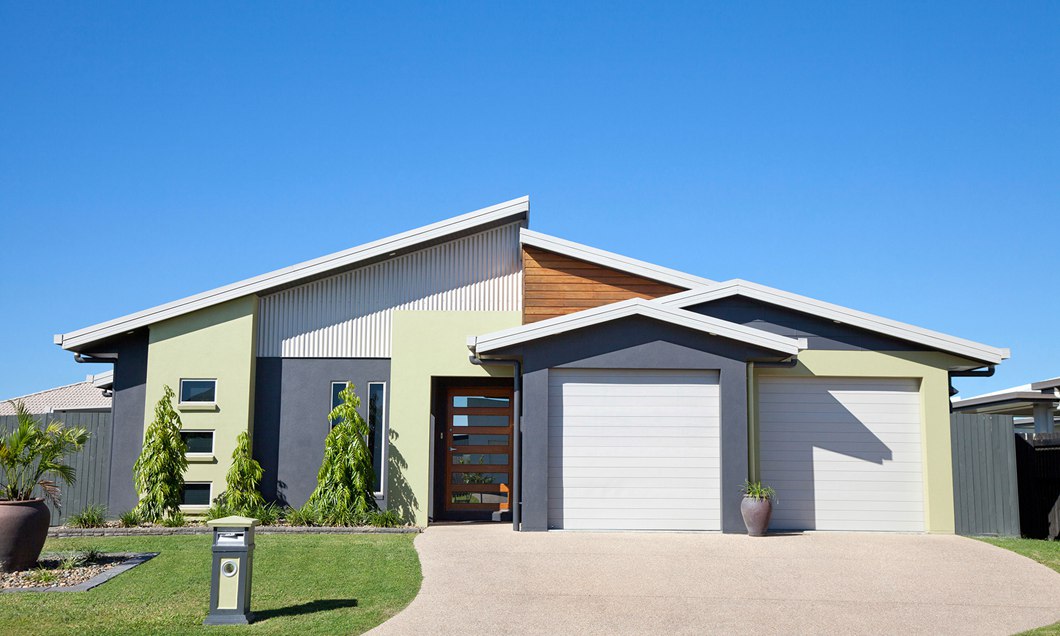

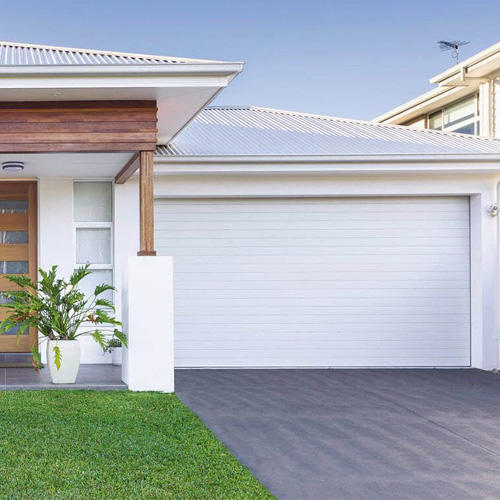

Insulated roller shutter door/ roller garage door
Why Insulated garage door?
Insulated roller garage doors by META Doors are are perfect solution for creating unique doors that suit your requirements exactly, especially for those area where heat&cold insulation are highly required.
As we all strive for a greener planet, insulated roller shutters manufactured by META Doors have become an more and more popular solution for improving our Clients' thermal efficiencies and reducing their carbon footprint. Offering an impressive weighted sound reduction, our insulated roller shutters can also help reduce noise pollution. META Doors offers two types of insulated roller garage doors, constructed from aluminum foam-filled insulated laths or steel insulated lath.
Our ongoing success in this field is due to many factors. First and foremost, our products are durable and easy to use. This means you’ll love using your META roller garage doors and you’ll be able to rely on it for many years to come.
Our steel insulated or aluminum insulated roller shutter garage doors are designed and widely used for commercial and residential garages.
What makes META insulated roller garage doors stand out?
♦ Energy saving. Polyurethanes can contribute to greater energy efficiency by reducing the demand for fuels in buildings, transportation and appliances. META insulated garage doors' full-perimeter seal and insulated curtains provide impressive reductions in air infiltration and thermal transference.
♦ Heat&cold insulation. Our insulated roller garage doors offer a high level of heat&cold thermal insulation thanks to their double skinned interlocking cold rolled steel laths or double skinned extruded aluminum laths with PU foam filled which increases the depth of the door by approximately 16mm.
♦ Sound Reduction. The full perimeter seal of these energy-efficient doors also reduces sound transmission compared to non-insulated rolling doors.
♦ Security / burglarproof. META’s exclusive range merges top-of-the-line insulated materials with a unique profile to create roller garage doors that are: Tougher, Quieter & More reliable.
TECHNICAL SPECIFICATIONS
| Item model | Max width | Max height | Color | Operation way | Options |
| MT014 | 10,000 mm | 9,000 mm | any RAL color by powder coating | manual operation, motorized operation | shutter box, safety sensor, UPS, safety brake, video surveillance |
Curtain:
We supply two type of insulated laths as below:

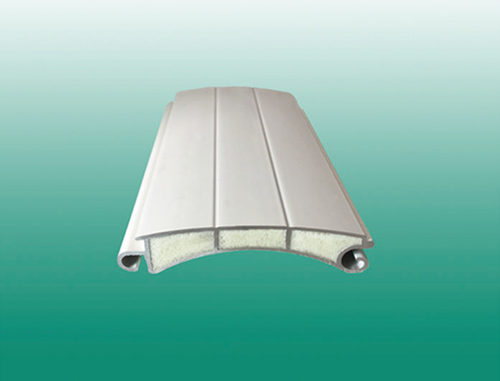

♦Aluminum insulated slats: double skinned, with PU foam filled, 77mm / 78mm / 120 mm pitch heihgt.
♦Steel insulated slats: double skinned, with PU foam, 80 mm pitch height, 0.8 mm thickness.
Bottom rail (with EPDM rubber weather real):
♦Material: Aluminum / galvanized steel
♦With plastic end caps on both sides
♦With EPDM rubber weather seal to prevent the dust, rain, insects from coming inside.
Guide rail (optional with rubber):
♦Material: Aluminum / galvanized steel
♦Dimension: from 70mm to 100 mm width
♦Thickness available: from 1.2 mm to 3 mm thickness
♦Optional: With brush inserted on both sides of the guide rail, to make the door runs more quietly and smoothly.
Shaft / Axle:
♦Material: galvanized steel
♦Diameter: 3 inches, 5 inches, 6 inches, 8 inches, 10 inches
♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm
Mullions: Removable center mullions are available on request for applications were shutter opening can’t be covered by one shutter door.
Side plates / brackets
♦The brackets are manufactured from mild steel and supplied in premed finish
♦The brackets can only be installed on a structural fixing surface such as concrete, steel columns, steel angles are normally used to supported the brackets if needed
♦With plates slotted to accommodate shaft or motor mounting.
Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Automatic operation with motor(remote controls, switch button)
Optional:
♦Shutter box / hood cover
♦Safety sensor
♦Safety brake / anti-fall device
For more information, please contact us

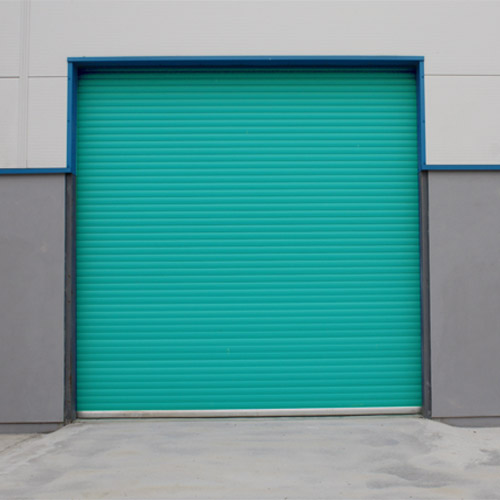

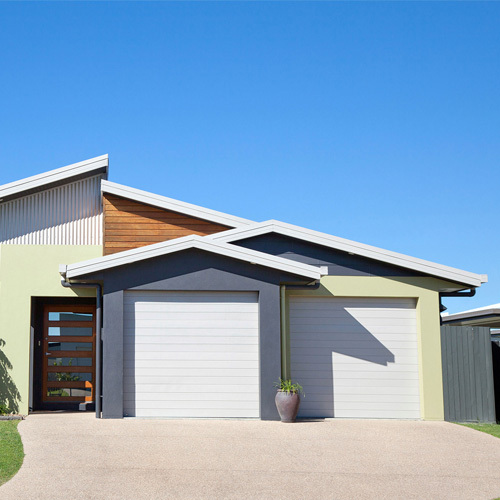

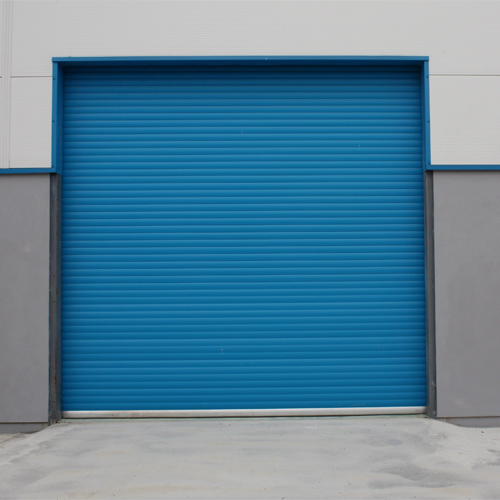

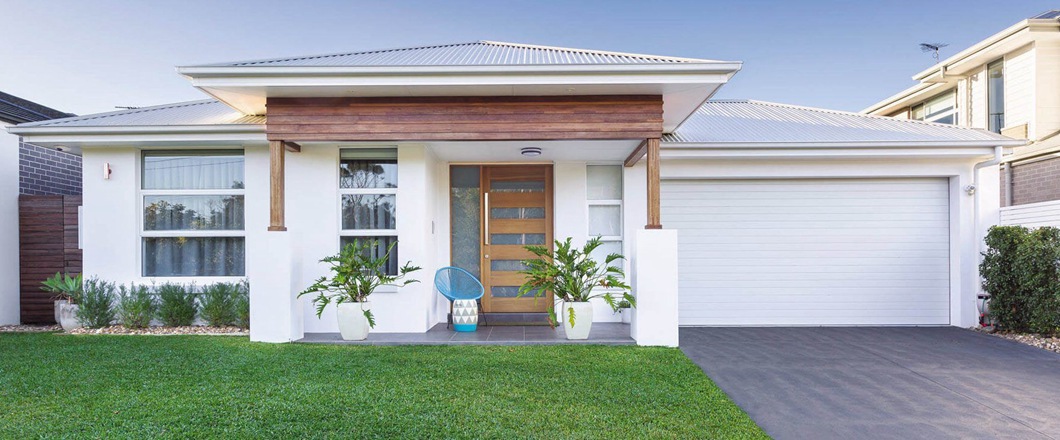

PROJECT PHOTOS
DOOR CURTAIN OPTIONS

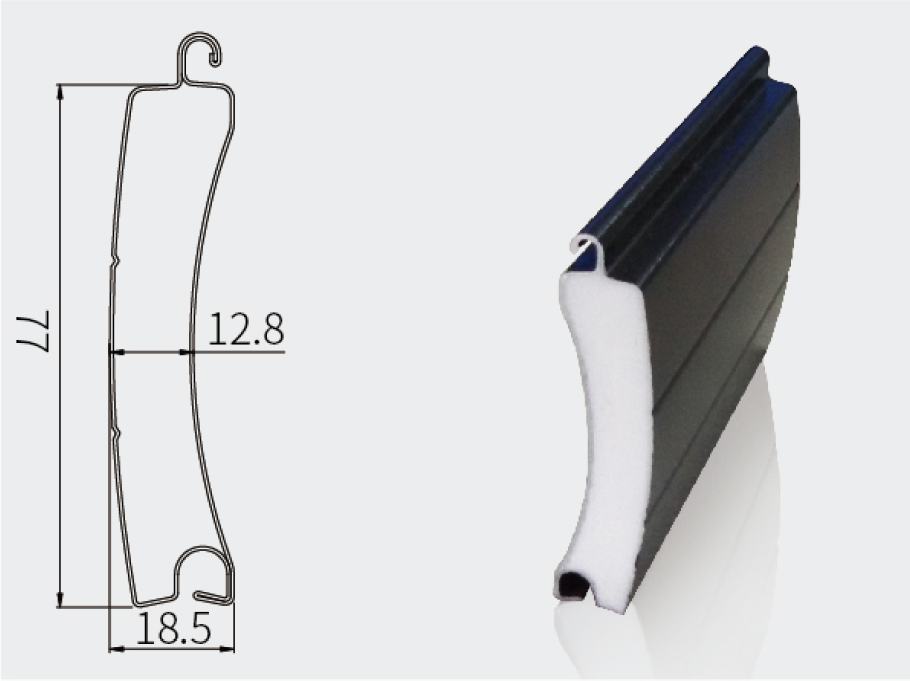

77mm aluminum insulated slat (0.5 mm thickness,double skinned) 77mm aluminum extruded & insulated slat (1 mm thickness,double skinned)

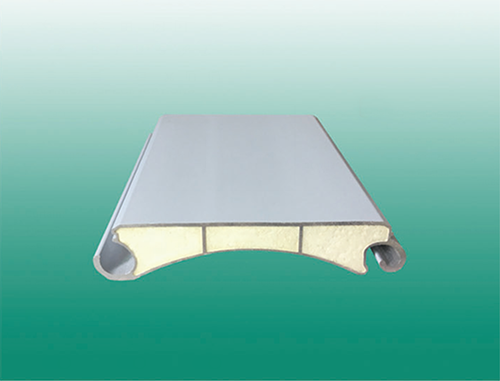

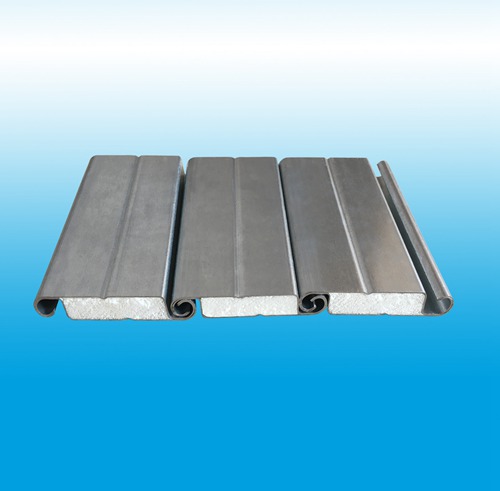

120mm aluminum extruded & insulated slat (1.4 mm thickness,double skinned) 80mm steel insulated slat (0.8mm thickness, double skinned)
Other insulated slats are available by making a mould.

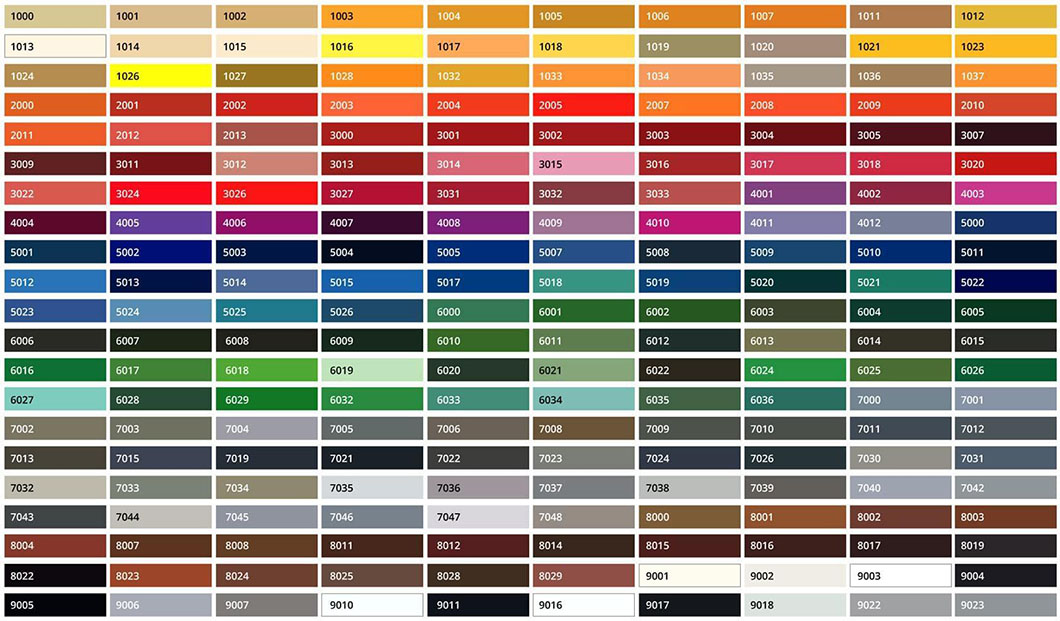

COLOR OPTIONS
Standard pre-painted color: white
Any other RAL colors are available by powder coating, anodized, electrophoresis, PVDF.
