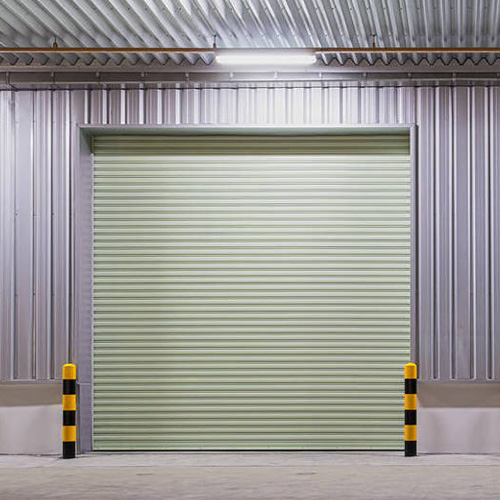

At META Doors, we have combined the design and strength of the steel roller garage door with our exclusive garage door lath profile, to give an aesthetically pleasing look, specially designed for the residential garage. All doors are CE marked and fully compliant with all directives and regulations. Low maintenance, automatic and come in a choice of colours.
They can come in a range of colors and are heavy duty so they’re very fuel-efficient whilst keeping your assets safe & protected from theft. Consisted of interlocking steel slats, with steel end clips on both sides of the curtain to prevent lateral movement, our steel roller shutter garage doors are designed and widely used for commercial and residential garages.
Our steel roller shutter garage doors are custom made for each garage opening and because of how they are constructed, it allows you to maximize your drive-through height and width. Tall openings, arches, and extra-wide openings are not a problem for us to accommodate. These doors are built to a residential strength and are also suitable for industrial&commercial buildings.
♦ Security / burglarproof. Can't break in under normal tools, strike, or lift.
♦ Afforable. Steel roller shutter garage door are cheaper than aluminum roller garage door.
♦ Long service life. Steel roller shutter garage door is made of rolled forming slats, which makes the garage door more strong and with long life service.
♦ Automatic operation by remote control, wall-mounted switch button.
♦ Manual operation: There is a manual hoist chain on the motor, in case of power off, you could still open/close the garage door by manual hoist chain.
♦ Nice appearance. The steel roller shutter garage door could be powder coatet to any standard RAL color to meet your design requirement to match the surroundings.
| Item model | Max width | Max height | Color | Operation way | Options |
| MT012 | 7,000 mm | 7,000 mm | any RAL color by powder coating | manual operation, motorized operation | shutter box, safety sensor, UPS, Anti-drop safety brake, video surveillance |
The rolling garage door curtain itself consists of Consisted of interlocking steel blades/slats, with steel end clips on both sides of curtain to prevent lateral movement.
Thickness option: 0.6mm, 0.8mm, 1 mm,1.2mm
Blade / Slat options: from 82mm to 110 mm pitch height, we always have the slats that suit your garage best.
Bottom rail (with EPDM rubber weather real):
♦Material: galvanized steel
♦With plastic end caps on both sides
♦With EPDM rubber weather seal to prevent the dust, rain, insects from coming inside.
Guide rail (optional with rubber):
♦Material: galvanized steel
♦Dimension: from 70mm to 100 mm width
♦Thickness available: from 1.2 mm to 3 mm thickness
♦Optional: With brush inserted on both sides of the guide rail, to make the door runs more quietly and smoothly.
Shaft / Axle:
♦Material: galvanized steel
♦Diameter: 3 inches, 5 inches, 6 inches, 8 inches, 10 inches
♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm
Mullions: Removable center mullions are available on request for applications were shutter opening can’t be covered by one shutter door.
Side plates / brackets
♦The brackets are manufactured from mild steel and supplied in premed finish
♦The brackets can only be installed on a structural fixing surface such as concrete, steel columns, steel angles are normally used to supported the brackets if needed
♦With plates slotted to accommodate shaft or motor mounting.
Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Automatic operation with motor(remote controls, switch button)
Optional:
♦Shutter box / hood cover
♦Perforated slats, punched slats are available if needed
♦Wicket door
Warranty / Guarantees:
All META doors are fully compliant and CE marked. They come with a comprehensive 3 years warranty. Unfortunately, we cannot offer any warranties on any of the finishes for doors fitted within 1000 meters of the sea or salt estuary.
For more details on our range of roller garage doors, Kindly contact our friendly team on:
Phone Call: 0086-20-39010223
Whatsapp: 0086-13580383169
E-mail: [email protected]

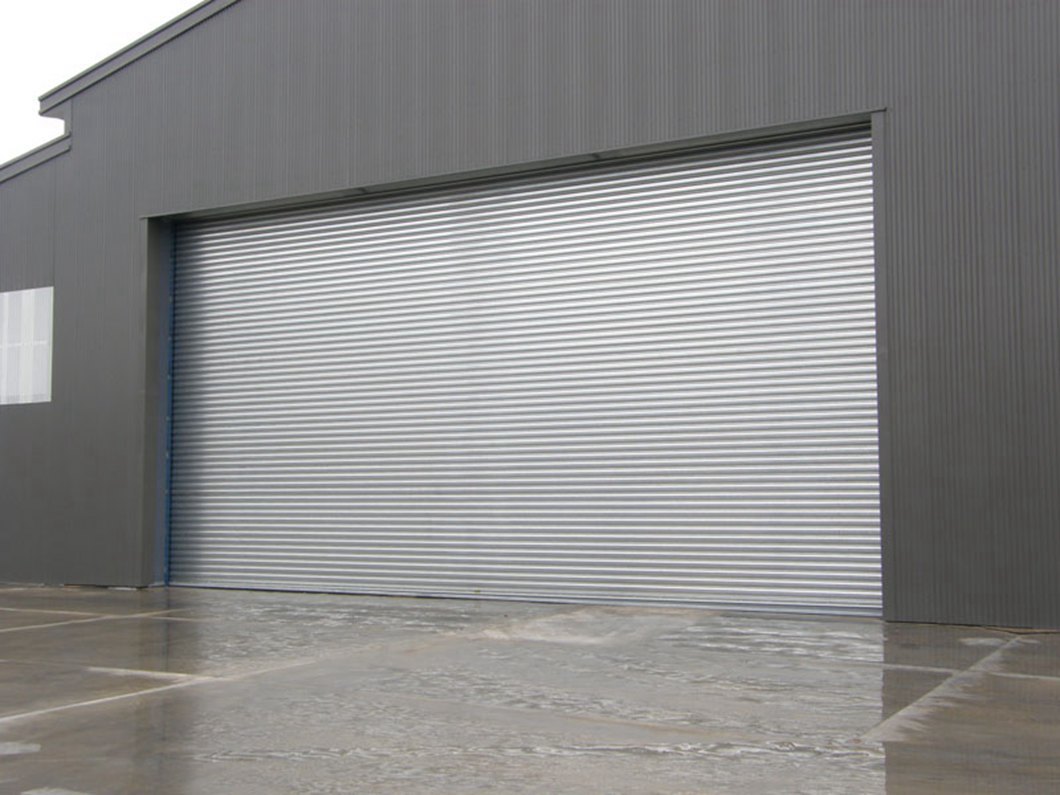

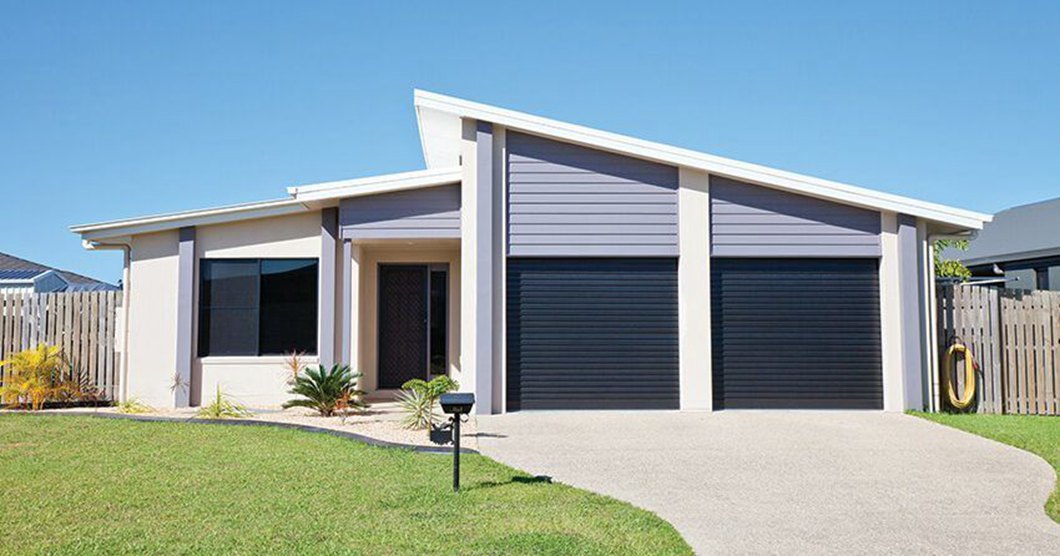

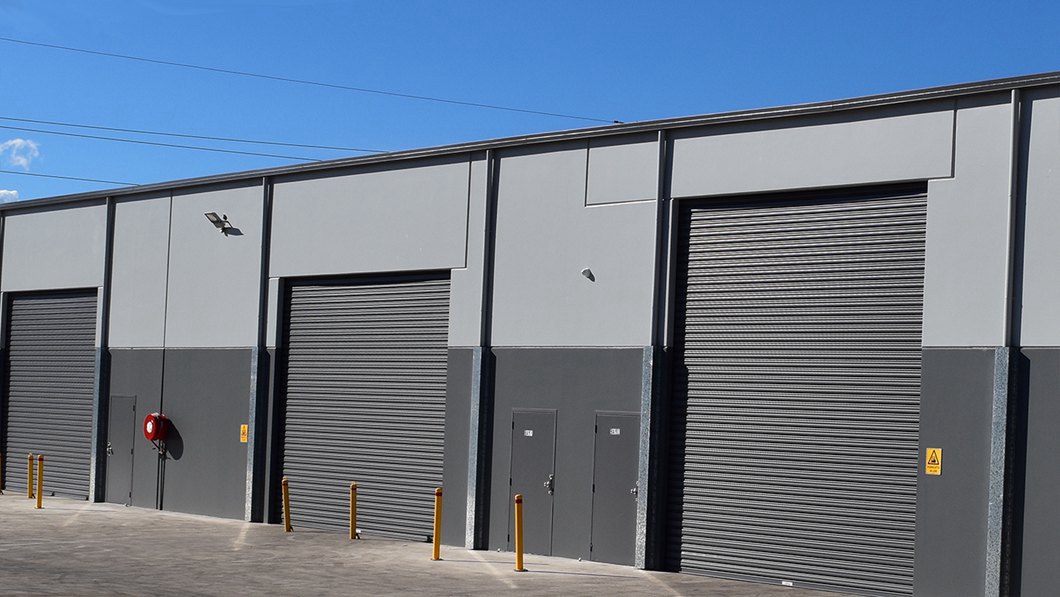

PROJECT PHOTOS
Solid steel slat Micro-perforated steel slat
Punched slat
COLOR OPTIONS
Standard color: the original color of galvanized steel

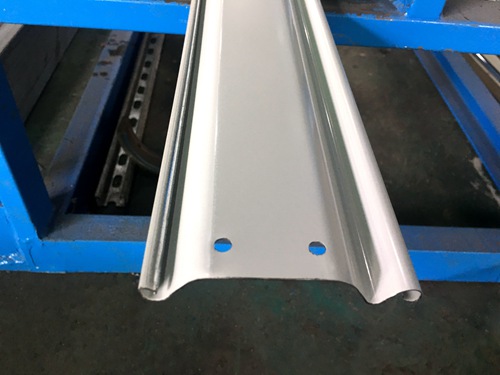

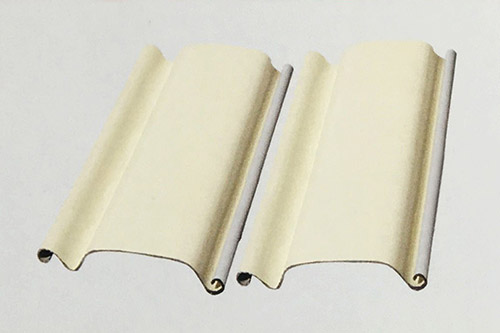

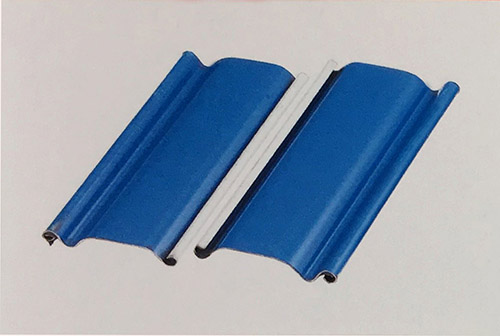

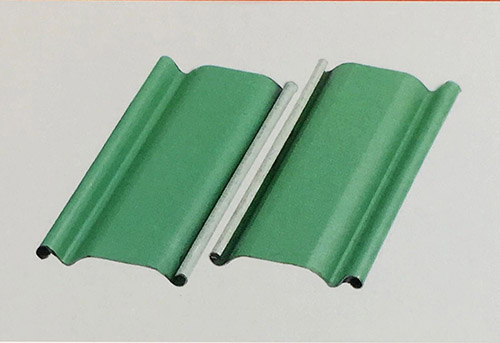

Standard pre-painted color: white & blue & green & cream (front side), the back side will be light grey color.
Any other RAL colors are available by powder coating.
